介紹

嵌入式系統開發中，燒錄是一個至關重要的環節。然而，長期以來，我們發現國產芯片現有的燒錄工具在跨平臺方面存在著一些不便之處。對于Synwit單片機而言， 暫時沒發現在Mac平臺上有合適的燒錄工具。因此，我們決定著手在Mac下開發一個全新的上位機工具，簡化燒錄過程，提高開發效率，并為Synwit單片機的使用者提供更多的選擇。為了實現這一目標，我們選擇了Rust作為主要開發語言，并借助Slint語言設計界面。

在這個項目中，我們將結合Rust的內存安全和高性能優勢，Slint優雅的聲明式語言設計UI，來快速打造一個簡單、易于使用的燒錄工具，為嵌入式開發者帶來便利。接下來，我將分享部分Rust代碼和Slint界面代碼，探討這個項目的開發過程和功能特點。

Rust后臺部分代碼如下：

let lister = Lister::new();
let ui_weak = ui.as_weak();

ui.on_flash(move |probe, chip, file| {
    let ui = ui_weak.unwrap();
    let p = PROBES.lock().unwrap();
    let pb = p.get(probe as usize).unwrap().clone();
    let probe = pb.open(&lister);

    let probe = if let Ok(probe) = probe {
        probe
    } else {
        log::info!("open fail");
        return;
    };

    let mut session = probe
        .attach(String::from(chip).as_str(), Permissions::default())
        .unwrap();
    let flash_process = flashing::FlashProgress::new(move |e| match e {
        flashing::ProgressEvent::Initialized { flash_layout: _ } => {
            ui.invoke_print_log("Initialized".into());
        }
        flashing::ProgressEvent::FinishedProgramming => {
            let cnt = ui.get_success_cnt() + 1;
            ui.set_success_cnt(cnt);
        }
        flashing::ProgressEvent::FailedErasing
            | flashing::ProgressEvent::FailedProgramming => {
                let cnt = ui.get_fail_cnt() + 1;
                ui.set_fail_cnt(cnt);
            }
        _a => ui.invoke_print_log(format!("{:?}", _a).into()),
    });
    let mut download_options = flashing::DownloadOptions::default();
    download_options.verify = true;
    download_options.progress = Some(flash_process);
    let _ = flashing::download_file_with_options(
        &mut session,
        String::from(file).as_str(),
        flashing::Format::Elf,
        download_options,
    )
        .inspect_err(|e| {
            log::error!("error: {}", e);
        });
});

界面Slint代碼如下：

import { Button, VerticalBox , HorizontalBox, CheckBox, GroupBox} from "std-widgets.slint";
import { FileTextEdit } from "component/FileTextEdit.slint";
import { TitleComBox } from "component/TitleComBox.slint";
import { TextEdit } from "component/TextEdit.slint";

export struct Vender {
    name: string,
    chip: [string],
}

export component AppWindow inherits Window {
    title: @tr("MCU Flash@Hysonglet");
    in-out property <[Vender]> chip_set : [];
    in-out property success_cnt;
    in property  fail_cnt;
    in-out property  firmware;
    in property  firmware_detail;
    in property <[string]> probe_list: [
        @tr("first"),
        @tr("second")
    ];
    in property <[string]> vender_list: [
    ];
    in property <[string]> chip_list: [];
    callback flash(int, string, string);
    pure callback firmware_ready() -> bool;
    pure callback process() -> int;

    public function clear_log() {
        log.clear()
    }
    public function print_log(txt: string) {
        log.print(txt);
    }

    height: 480px;
    width: 720px;
    HorizontalBox {
        alignment: LayoutAlignment.space-between;

        left := VerticalBox {
            alignment: LayoutAlignment.space-around;
            spacing: 0px;
            file_text_edit := FileTextEdit {
                width: 210px;
                height: 180px;
                process: root.process()*1.0/100.0;
                firmware <=> root.firmware;
                file_detail: firmware_detail;
            }
            probe := TitleComBox {
                title: @tr("Probe");
                model: root.probe_list;
            }
            vender:= TitleComBox {
                title: @tr("Vender");
                model: root.vender-list;
            }
            chip:= TitleComBox {
                title: @tr("Chip");
                model: root.chip_set[vender.current_index].chip;
            }

            Button {
                text: @tr("Flash");

                clicked => {
                    flash(probe.current_index, chip.current_value, root.firmware);
                }
                enabled: firmware_ready();
            }
        }

        VerticalBox {
            width: 450px;
            log := TextEdit {
                height: parent.height/1.2;
            }

            HorizontalBox {
                height: 45px;
                alignment: space-between;
                Button {
                    text: @tr("Success:") + root.success_cnt;
                }
                Button {
                    text: @tr("Fail: ") + root.fail_cnt;
                }
                Button {
                    text: @tr("Clear");
                    clicked => {
                        log.clear()
                    }
                }
            }
        }
    }
}

Rust后臺控制Jlink或CMISI-DAP工具，采用SWD協議，只需連接SWM341的SWC、SWIO、GND、VCC即可下載。

通過這個項目的開發，我深刻體會到了Rust語言的強大之處，其內存安全和高性能，為本項目提供了堅實的基礎。同時，使用slint設計界面，快速實現界面的定制，非常便捷優雅。

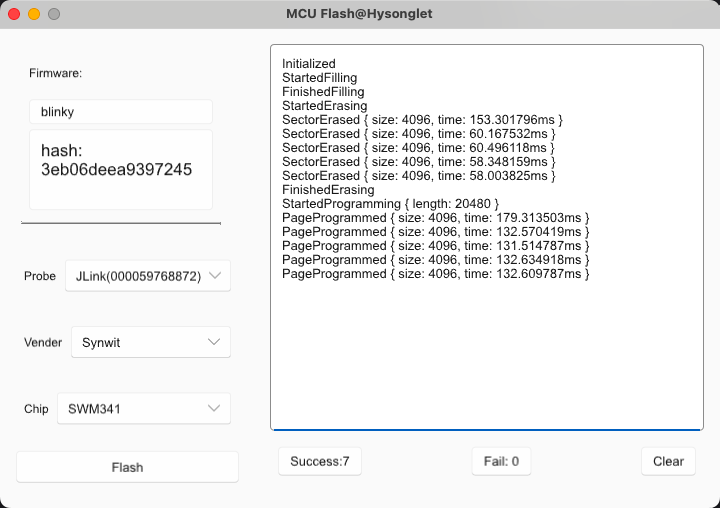

工具界面
